Gallery

Channel letters modelled with Channelier, printed and installed. Every sign below started as an Autodesk® Fusion 360™ model and ended up on a wall.

Jánošíkov Wellness, Slovakia

Our first outdoor commercial sign, at a wellness centre in the mountains of northern Slovakia. It has been outdoors since December 2022, through every winter since. janosikovdvor.sk

Place: Zázrivá, Slovakia, 2022
Add-in: Font Channelier Hobby, font Times New Roman Bold
Size: 3.6 m long, letters 210 to 280 mm high
Letters: 50 mm deep, 1 mm walls, 4 mm glass
Material: PETG; black walls, green glass, transparent white back for the halo on the brick
Light: warm white LED strip, 24 V
Mounting: aluminium rails

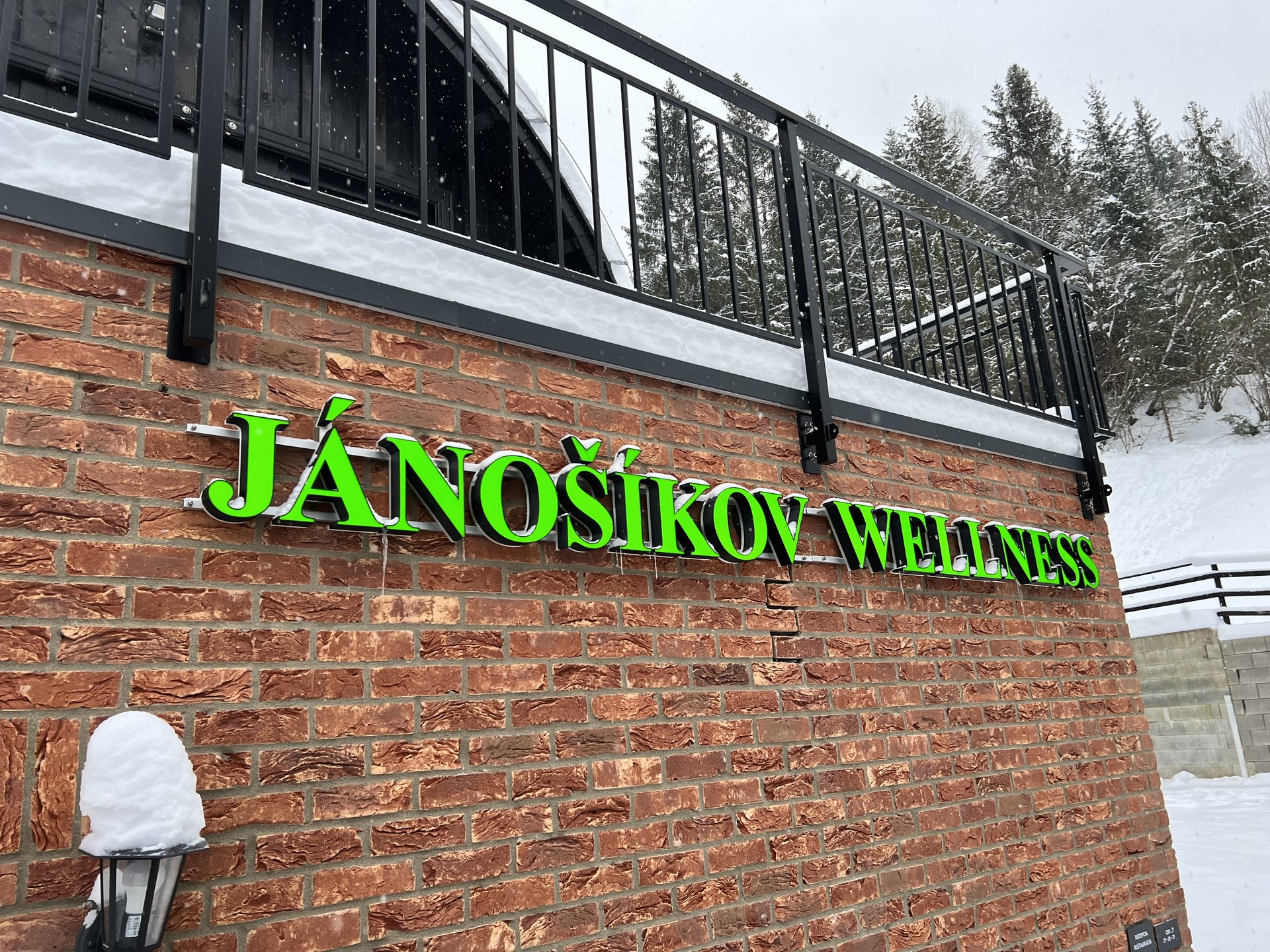

Jánošíkov Wellness channel letters on a brick wall in winter

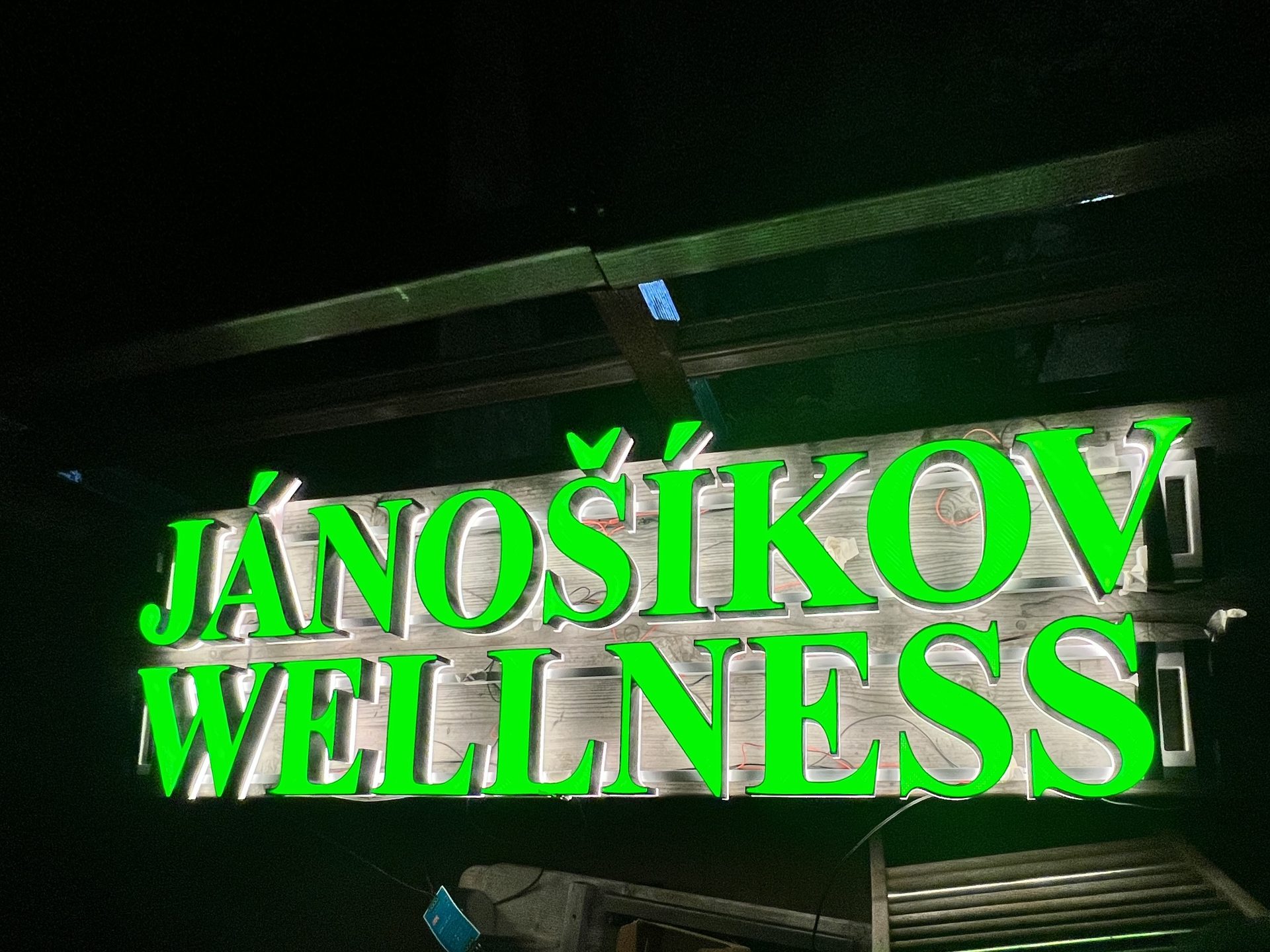

Green illuminated 3D-printed channel letters JÁNOÍKOV WELLNESS at night

Mounting 3D-printed channel letters on a brick wall from a ladder

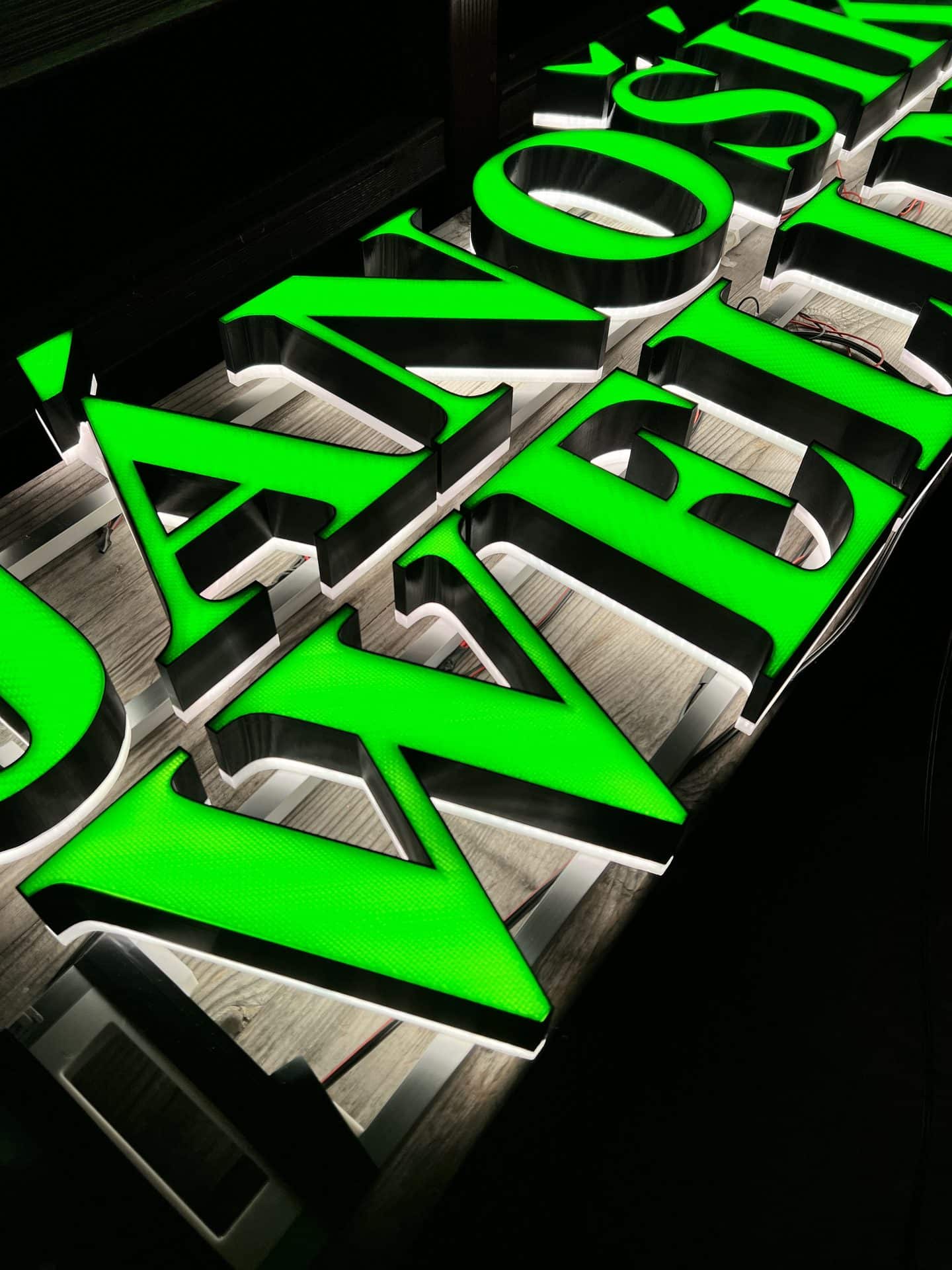

Close-up of glowing green 3D-printed channel letters on a wooden wall

Jánoíkov Wellness building at dusk with the illuminated sign

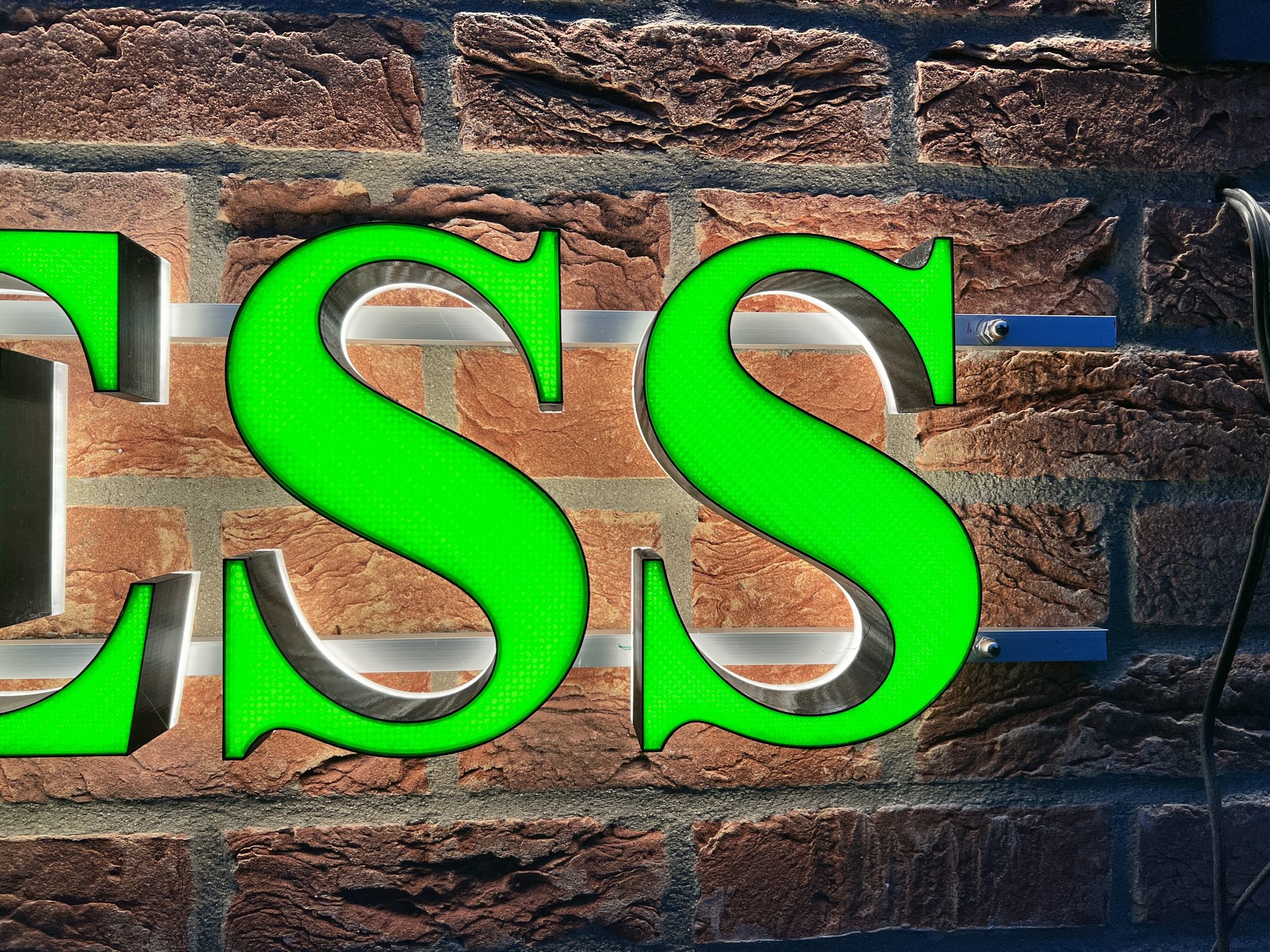

Detail of the letters ESS on a brick wall, lit from inside

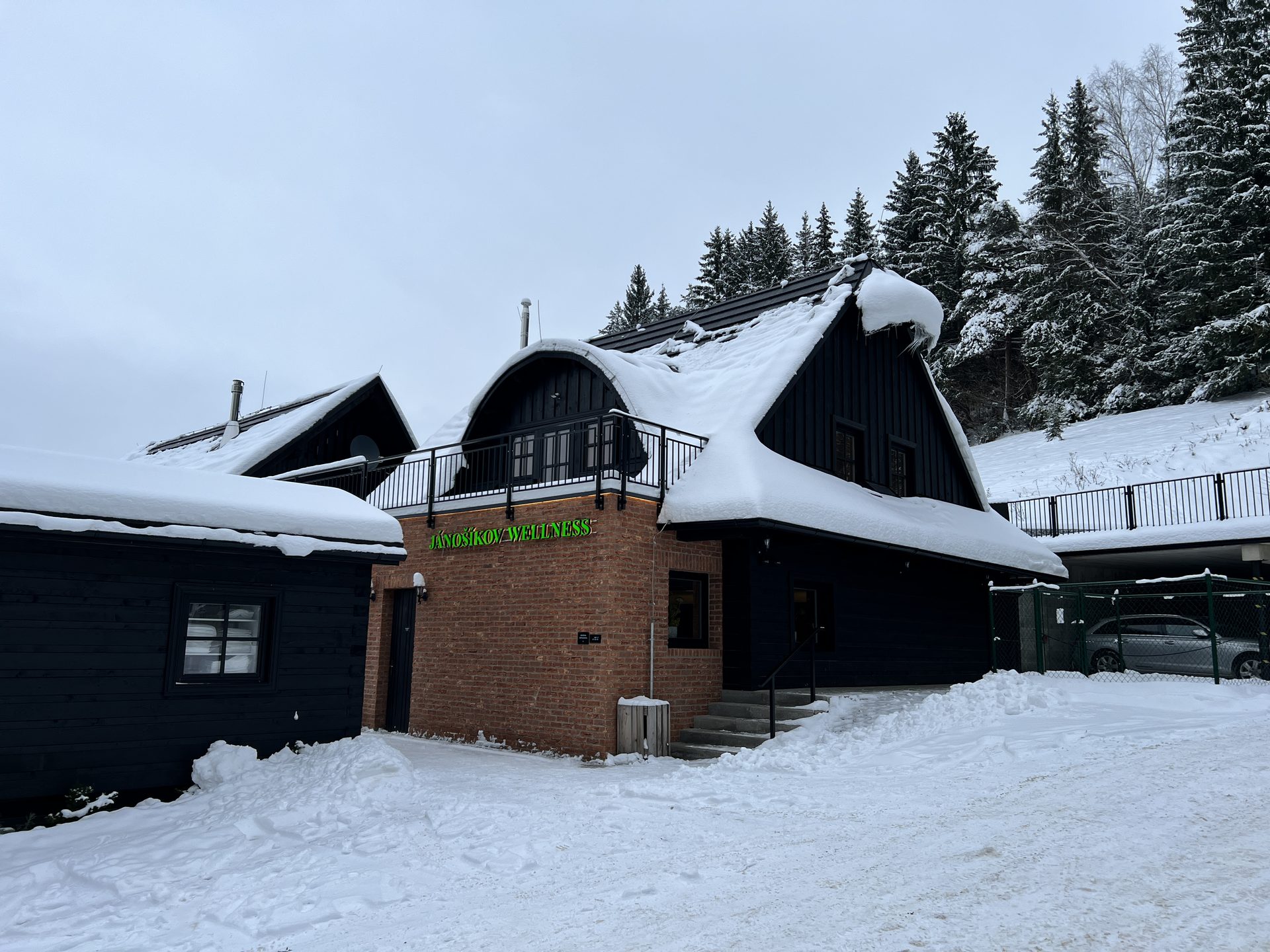

Jánoíkov Wellness resort in winter with the green sign on the brick wall

3D-printed channel letters JÁNO on a brick wall in daylight

Drawings from Autodesk® Fusion 360™

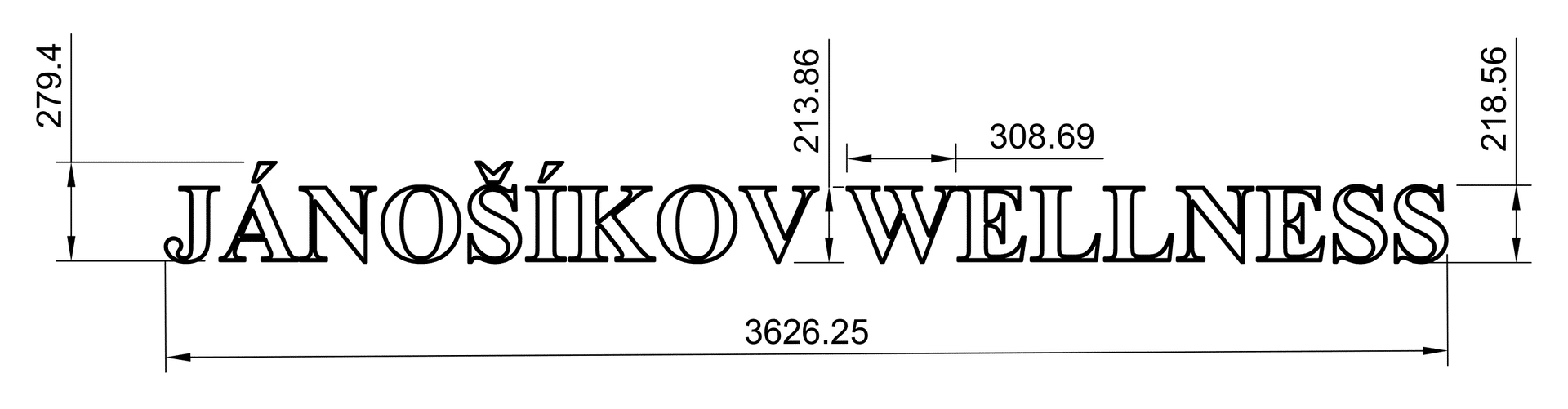

Drawing of the Jánošíkov Wellness sign: 3626 mm long, letters 214 to 279 mm high — The whole sign: 3626 mm

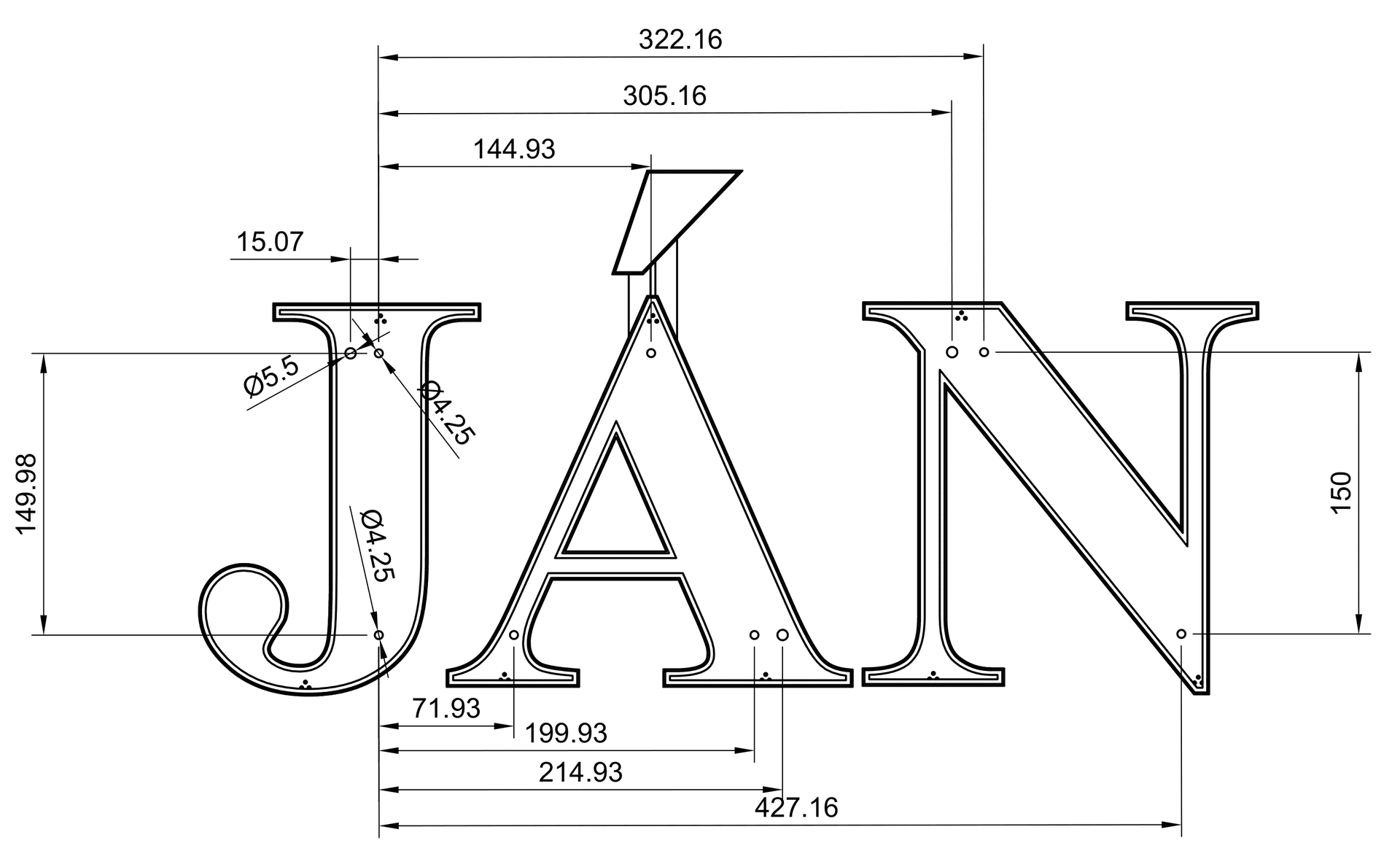

Drilling template for the letters J, Á and N with the hole positions for the rails — Drilling template: the hole positions for the rails, letter by letter

H&W: a wedding present

Marquee letters with light bulbs, made as a wedding present and the decoration of the wedding party. An RGBW remote sets the colour of the halo; the bulbs stay white.

Year: 2023, private
Add-in: Font Channelier Hobby
Size: 788 mm long, letters about 250 mm high
Material: PETG in four colours; transparent back, light blue-green walls, green glass, white bulbs
Light: RGB LED strip, 12 V, and large white LEDs in the bulbs
Mounting: aluminium rails

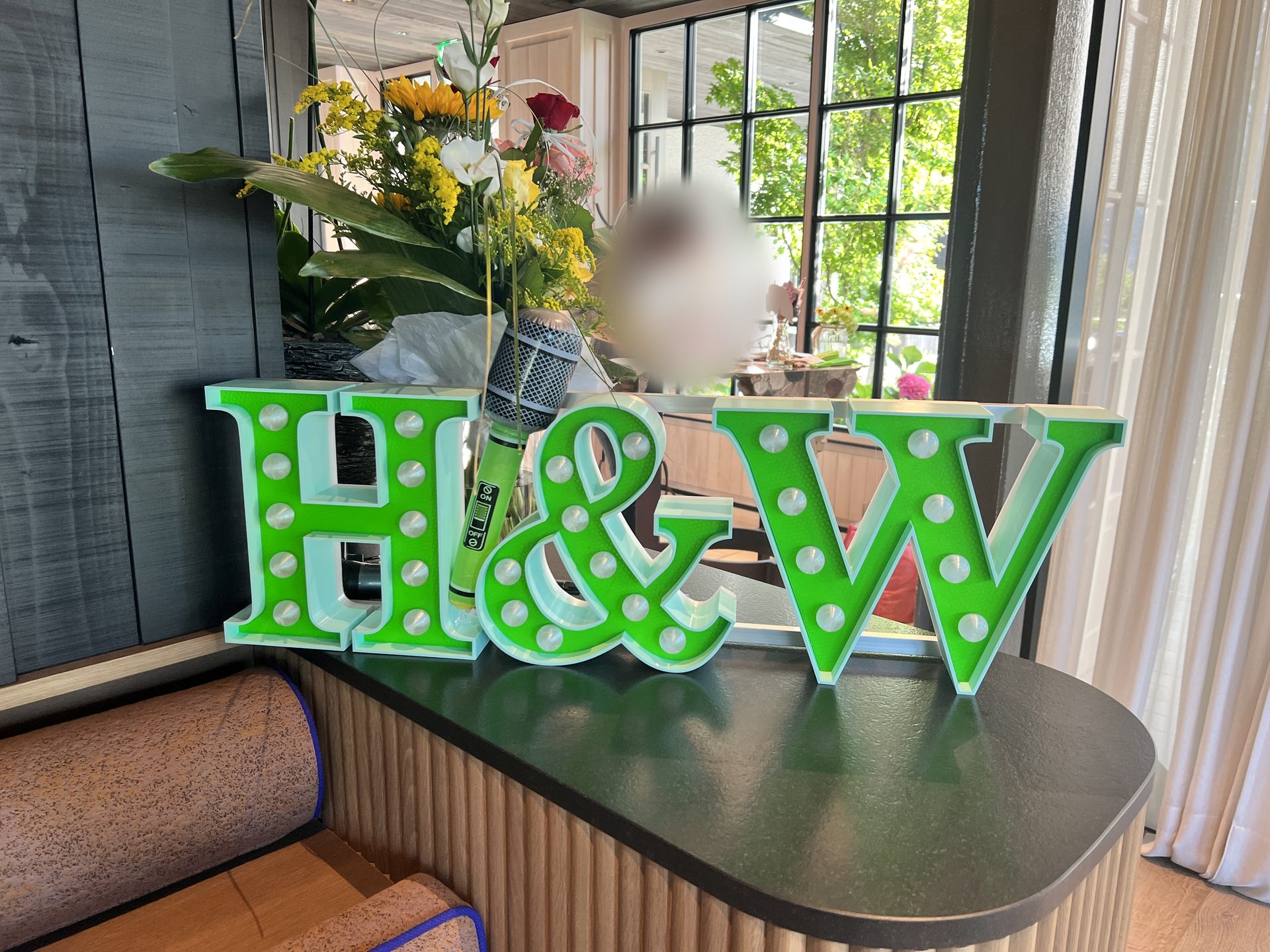

H&W marquee letters with bulbs on a bar counter at a wedding party

Close-up of the H&W letters: green glass, light walls and round bulbs

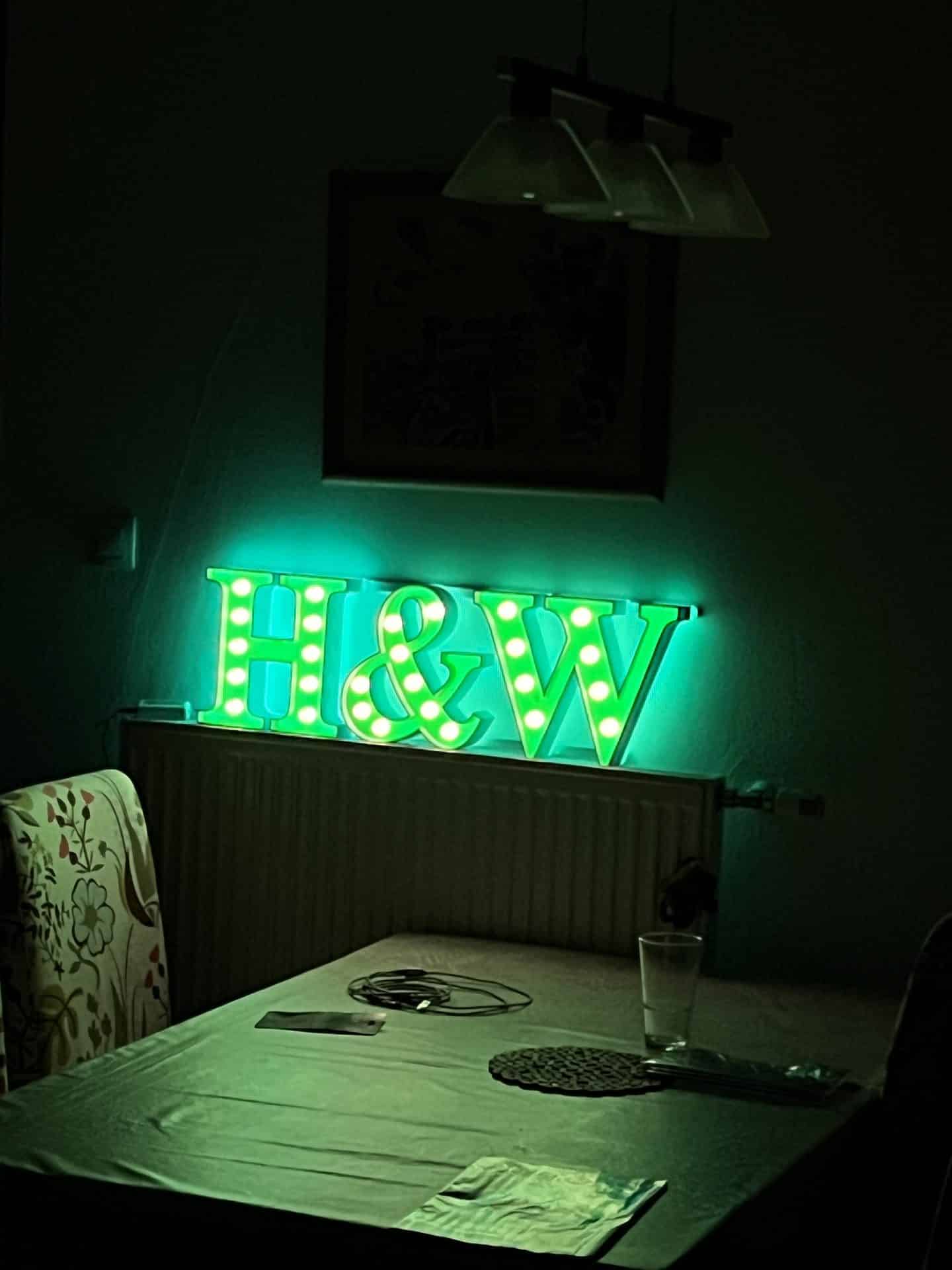

H&W sign lit green on a wall in the evening

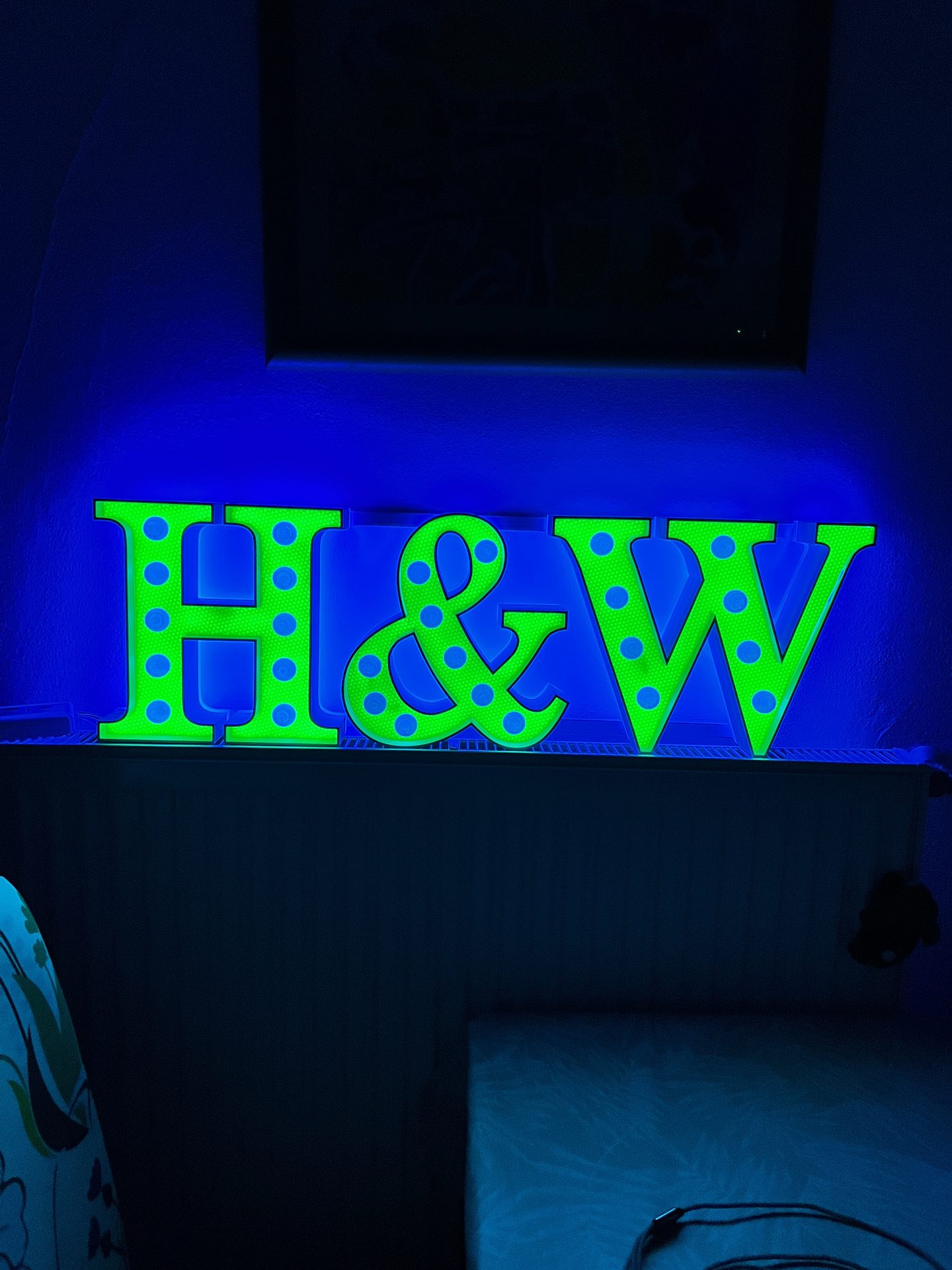

H&W sign with a blue halo from the RGB LED strip

Designed in Autodesk® Fusion 360™

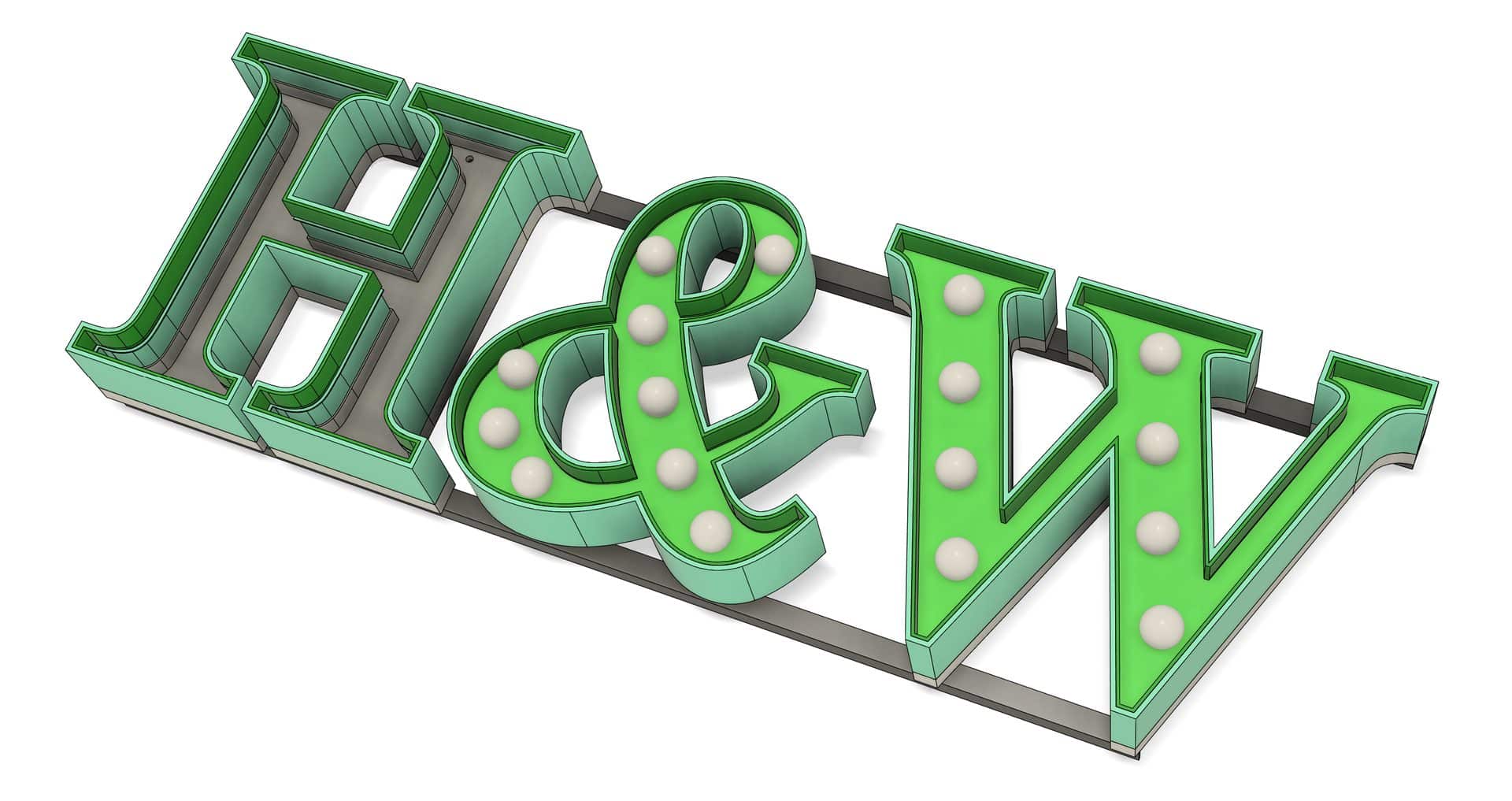

H&W letters in Autodesk Fusion 360: walls, glass, bulbs and two mounting rails — Walls, glass, bulbs and the two rails

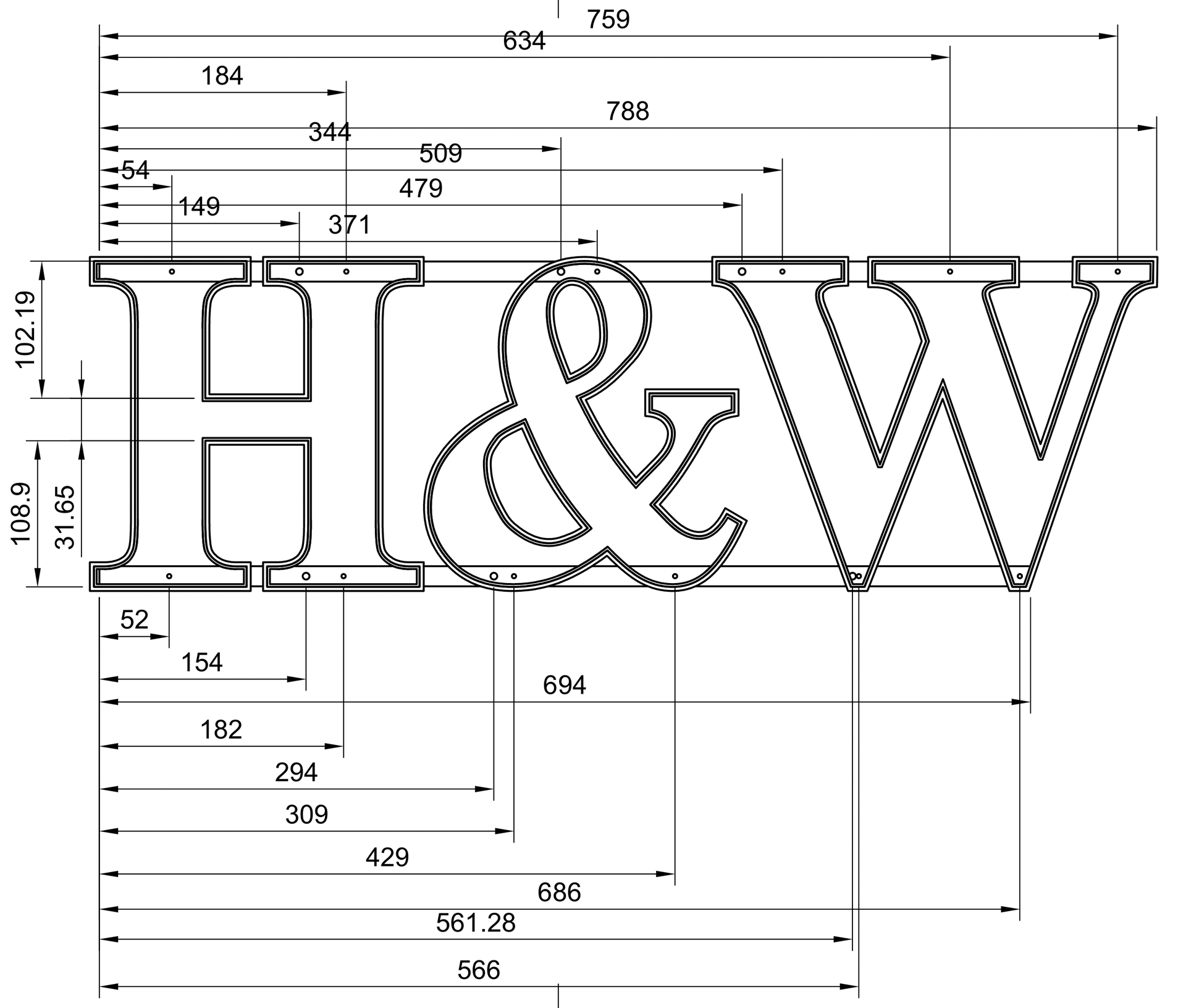

Drawing of the H&W sign: 788 mm long, with the hole positions for the rails — Drawing with the hole positions for the rails

Hoblík: stacked letters

Our own test sign, on the material and tool shed. Each letter is stacked from two layers; the sign shows how the new stacked design and the printed parts last outdoors.

Place: Bratislava, Slovakia, 2024
Add-in: Font Channelier Hobby
Size: 945 mm long on 1080 mm rails, letters 340 mm high
Letters: 70 mm deep, 1.6 mm walls, 4 mm glass with a green insert
Material: PETG
Light: white LED strip, 24 V
Mounting: aluminium rails

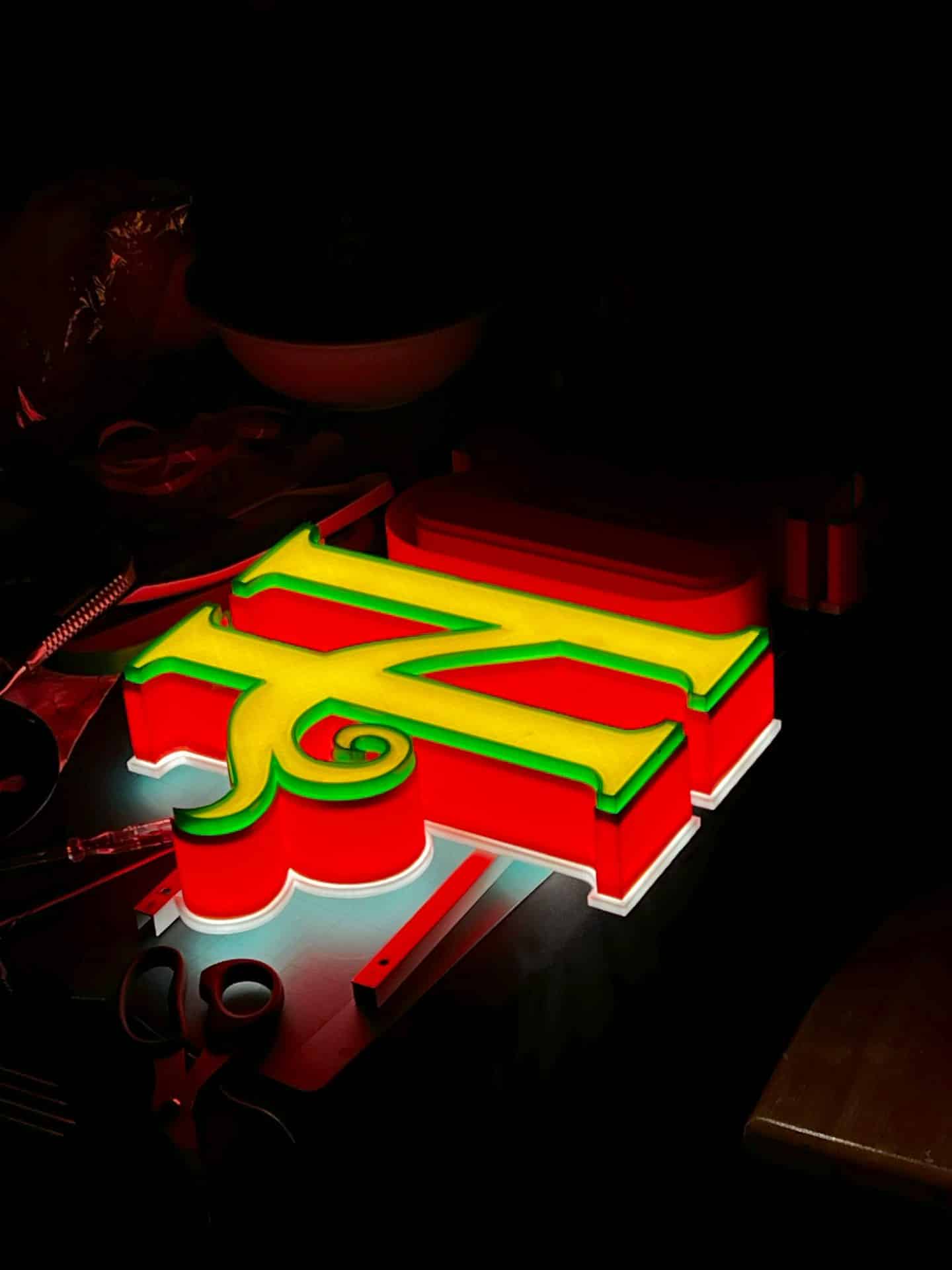

First lit letter of the HOBLÍK sign in the workshop

Lit HOBLÍK sign with stacked extrusions on the workbench

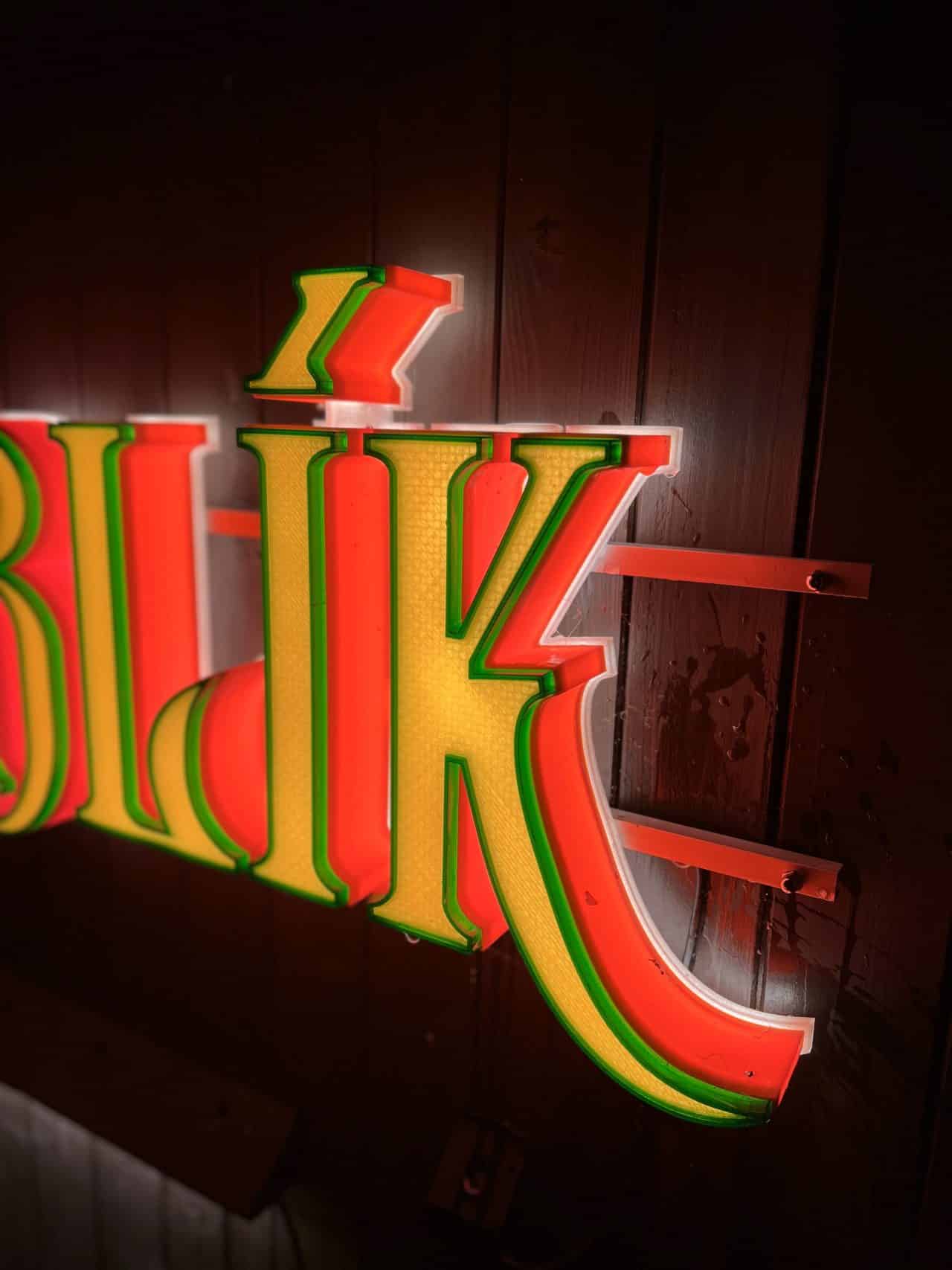

Close-up of stacked 3D-printed letters of the HOBLÍK sign

Designed in Autodesk® Fusion 360™

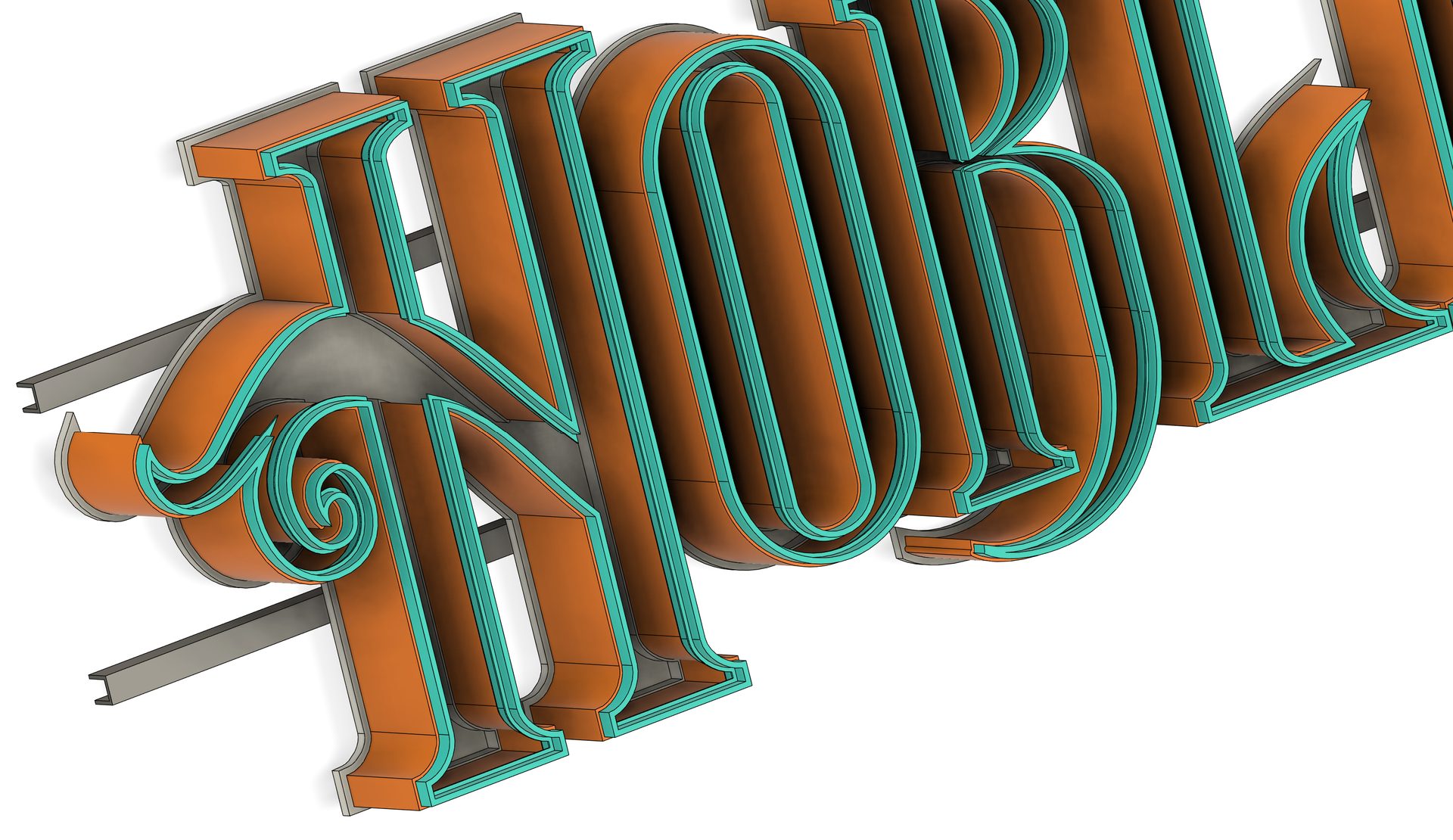

Hoblík sign in Autodesk Fusion 360: stacked letters in two layers on two rails — Two layers per letter on two rails

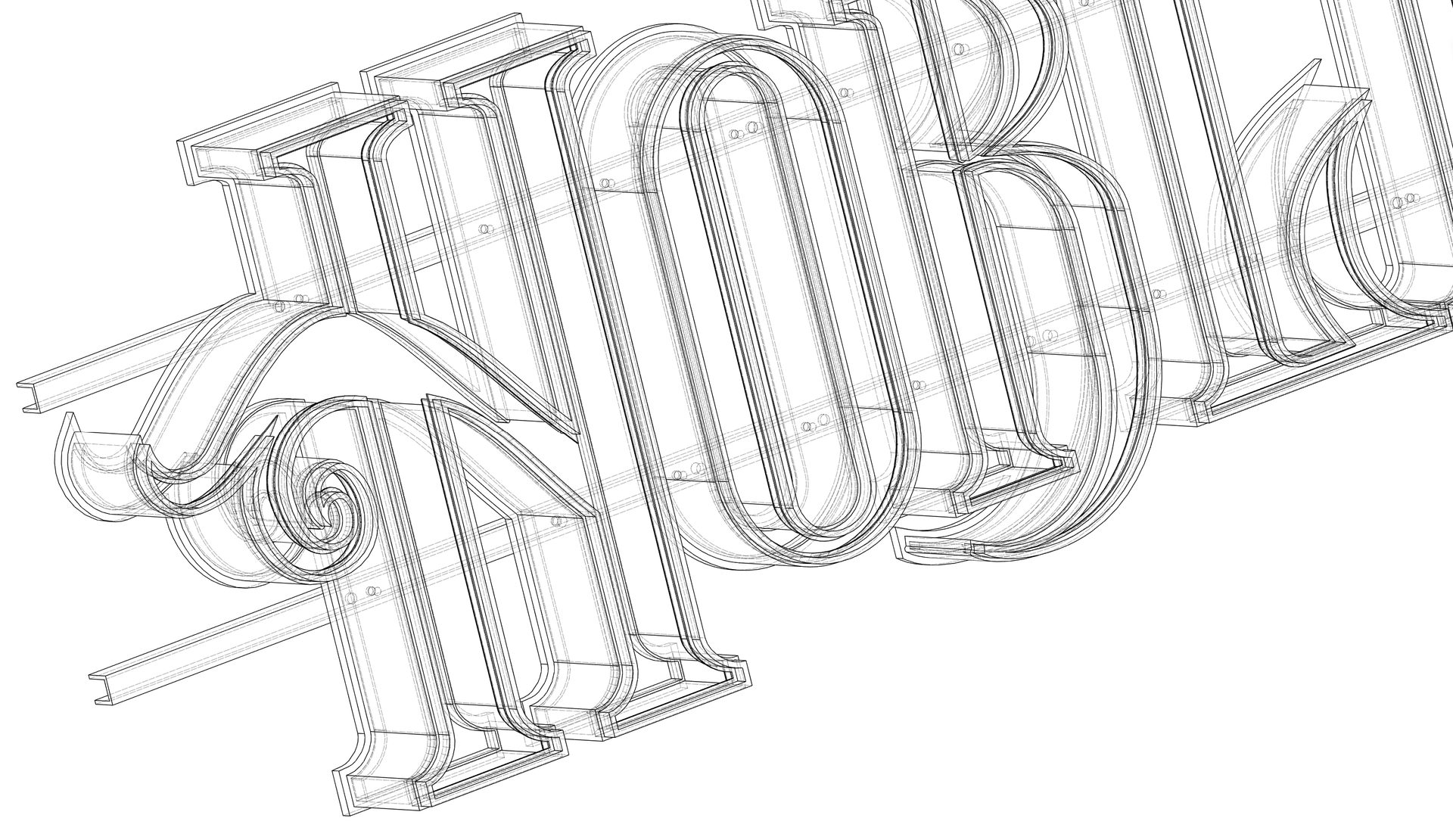

Hoblík sign in Autodesk Fusion 360 as a wireframe: walls, glass and rails of each letter — Wireframe: walls and glass of every layer

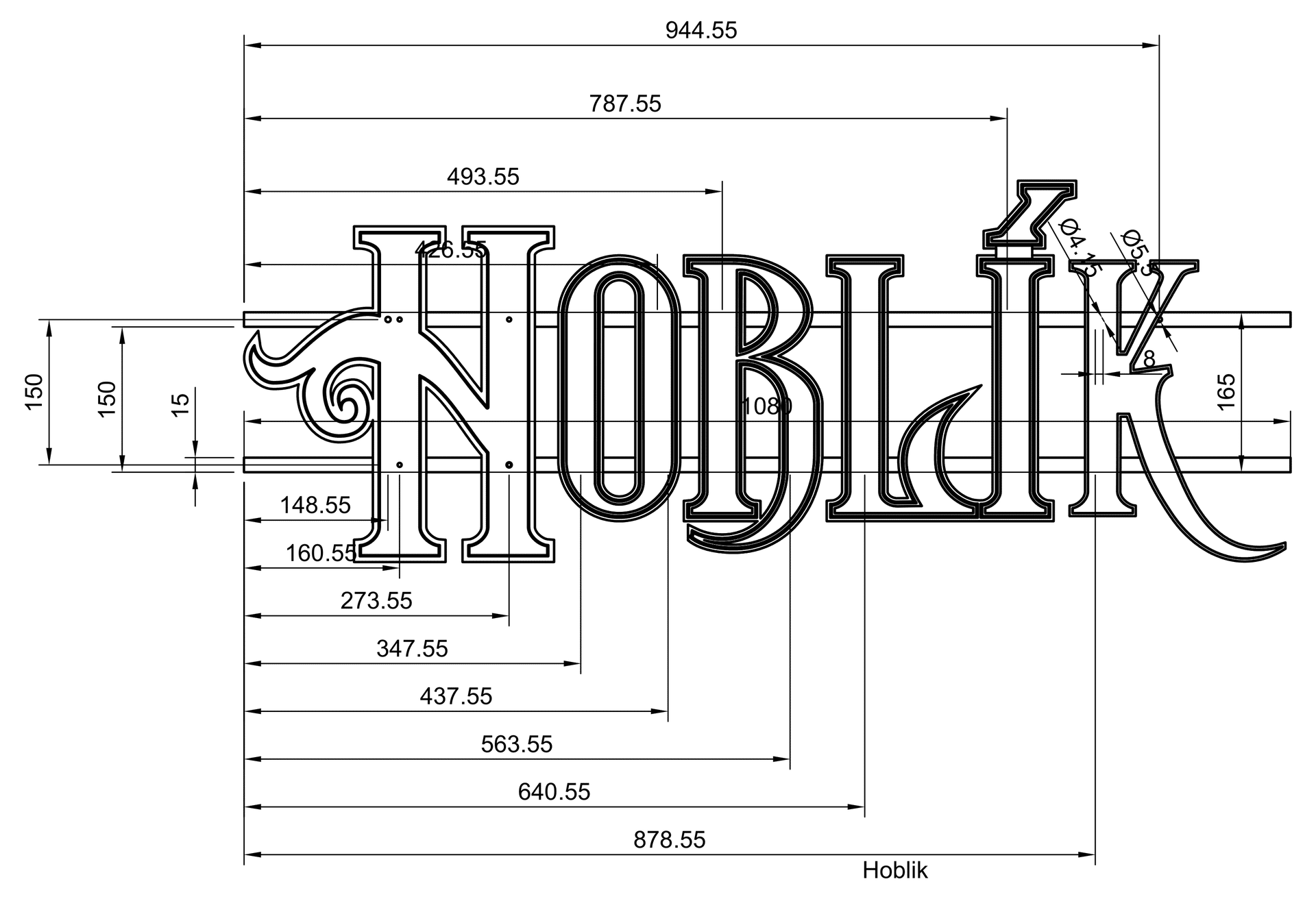

Drawing of the Hoblík sign: 945 mm long, on 1080 mm rails — Drawing with the hole positions for the rails

Inside a channel letter

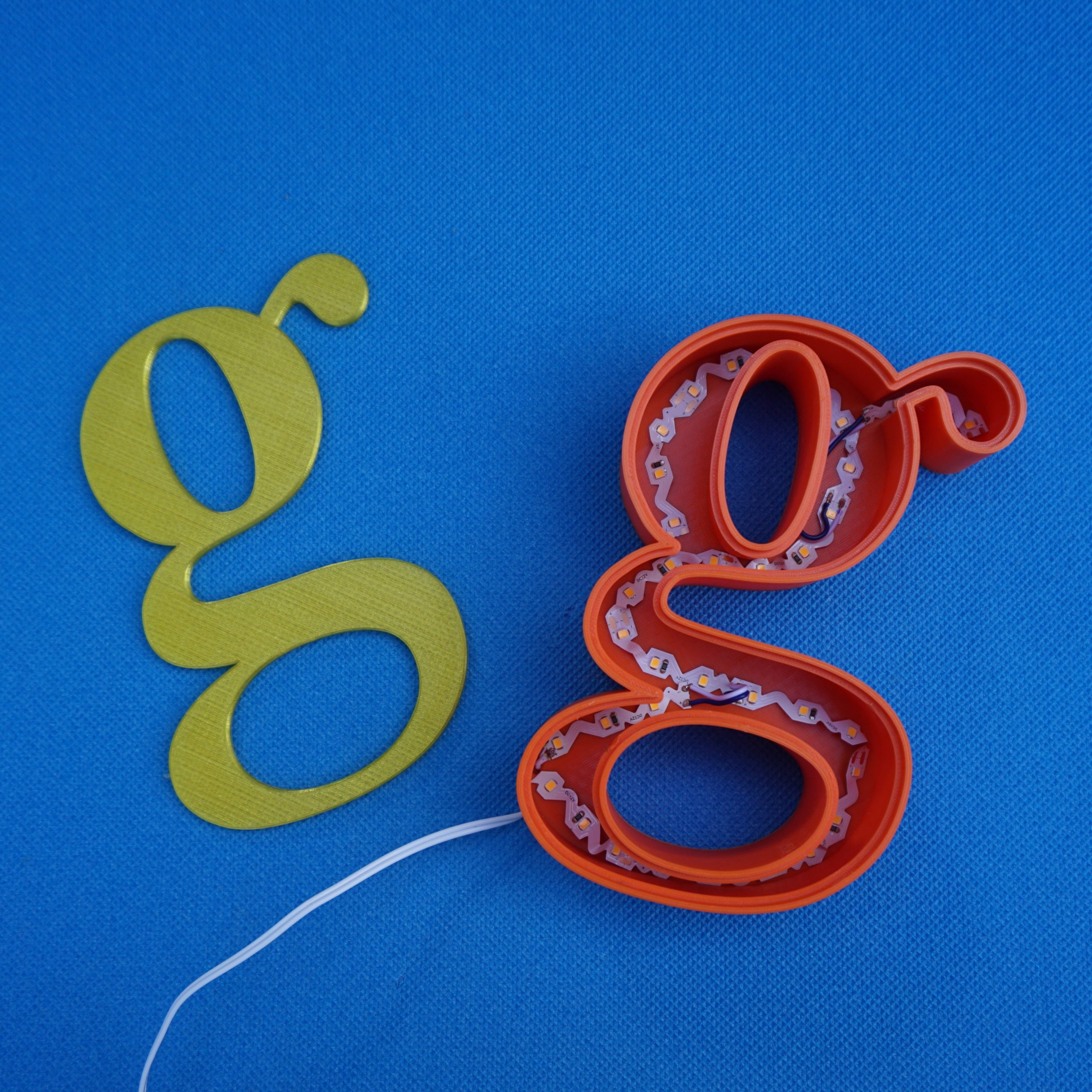

Inside of 3D-printed channel letters: walls, bottom and coloured glass

Walls, bottom and coloured glass of a printed letter before assembly.
